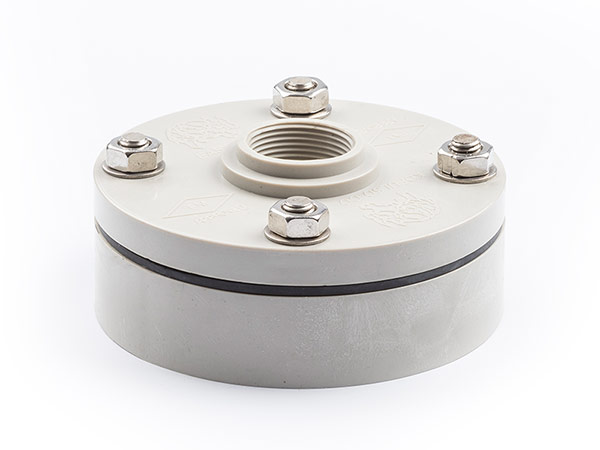

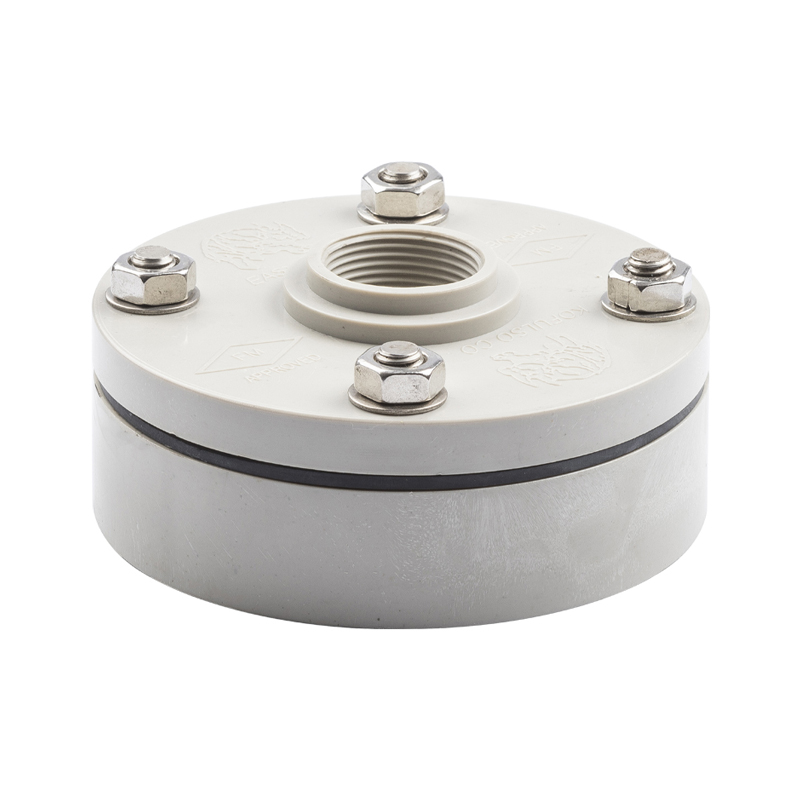

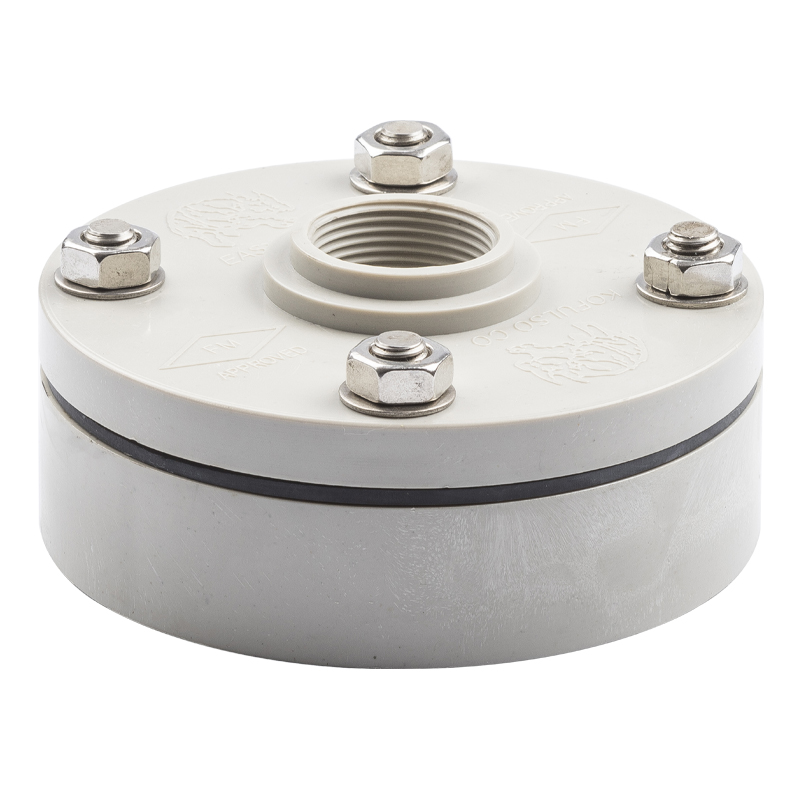

Mounting Flange For Square Duct (ABS)
Our braided flexible sprinkler hoses for industrial ducts are available with either a 1/2″ or 1″ outlet, and in three different lengths: 30″, 47″ and 67″. These hoses have a maximum temperature rating of 225°F and a maximum pressure rating of 175 psi.
-Stainless Steel 304 (Tube and Nipples)
-FM Approved
Technical Data
BRAIDED FLEXIBLE SPRINKLER DROPS APPLIANCE STANDARDS
National Fire Protection Association (NFPA):
NFPA 13: Standard for installation of sprinkler systems
NFPA 13D: Standard for the installation of sprinkler systems in one and two-family dwellings and manufactured homes
NFPA 13R: Standard for installation of sprinkler systems in residential occupancies up to and including four stories in height
NFPA 13 Section 9.2.1.3.3.3: Hangers are not required for flexible connections as long as the length does not exceed 6 ft.
Factory Mutual (FM), FM Class No. 1637:
Approved standard for flexible sprinkler hose with threaded end fittings

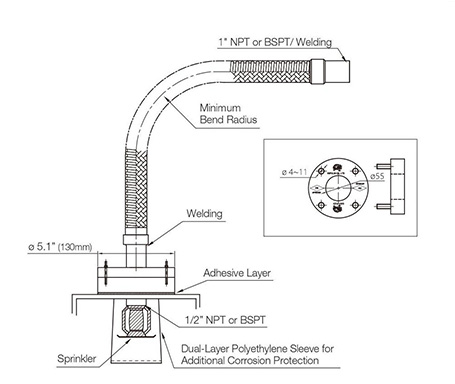

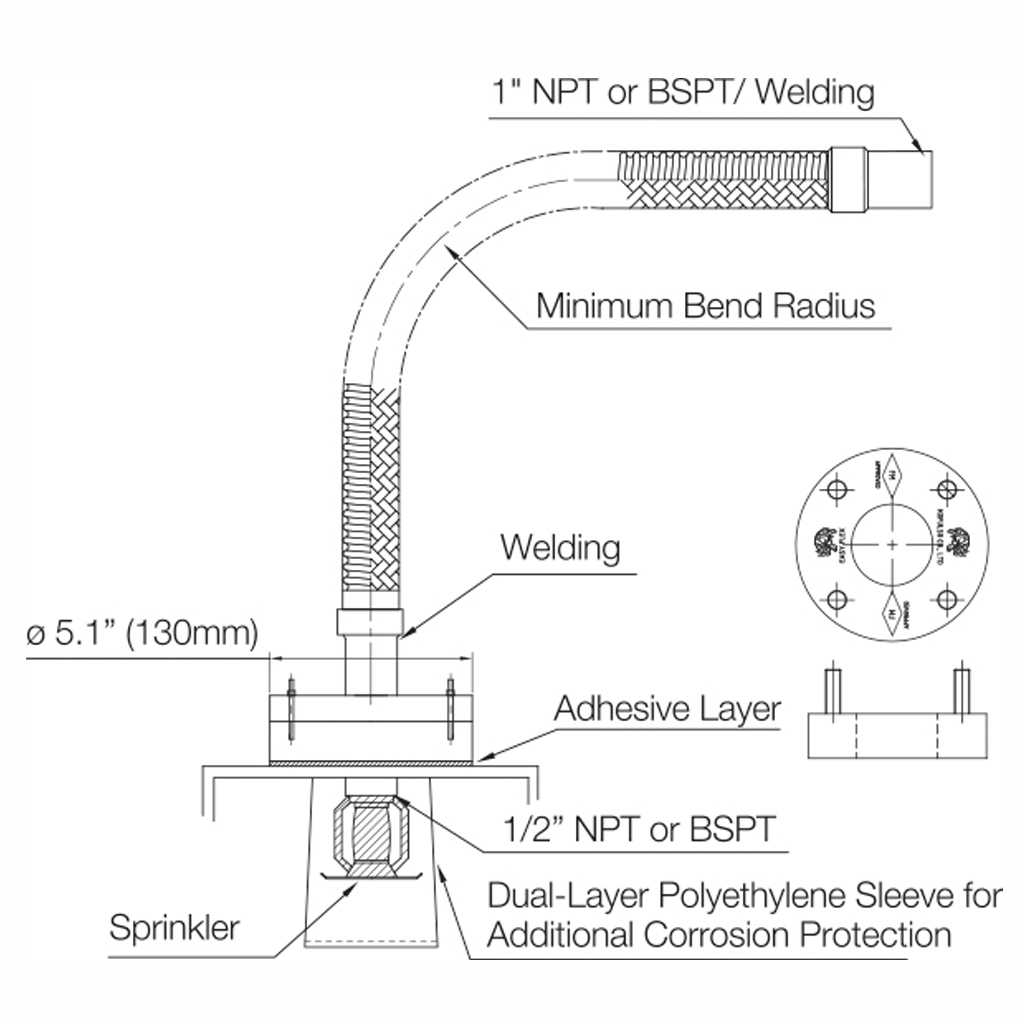

SQUARE DUCT APPLICATION
ROUND DUCT APPLICATION
SPECIFICATIONS
| Lengths Available | 30″, 47″, and 67″ | ||
| Connection | Inlet – 1″ | ||
| Outlet – 1/2″ |
MATERIALS
| Hose/Braid | Stainless Steel 304 | ||
| Flange | ABS (Duct) | ||
| Tube & Nipples | Stainless Steel 304 | ||
| O-Ring | EPDM |
TECHNICAL DATA
| Hose Type | Braided | ||
| Max. Temperature | 225°F | ||
| Max. Pressure | 174 psig | ||
| Min. Bend Radius* | 8″ | ||
| K-Factor | 1/2″ Outlet |
*Do not bend within 2.25″ from connection nuts
FRICTION LOSS DATA
| Model# | Length | Outlet Size | Max.# of 90° Bends | Equivalent Length of 1″ Sch. 40 Pipe, ft. | |||||
| KFDS-01A | 30″ | 1/2″ | 1 | 18.8 | |||||
| KFDS-02A | 47″ | 1/2″ | 2 | 29.2 | |||||
| KFDS-03A | 67″ | 1/2″ | 3 | 38.3 | |||||
