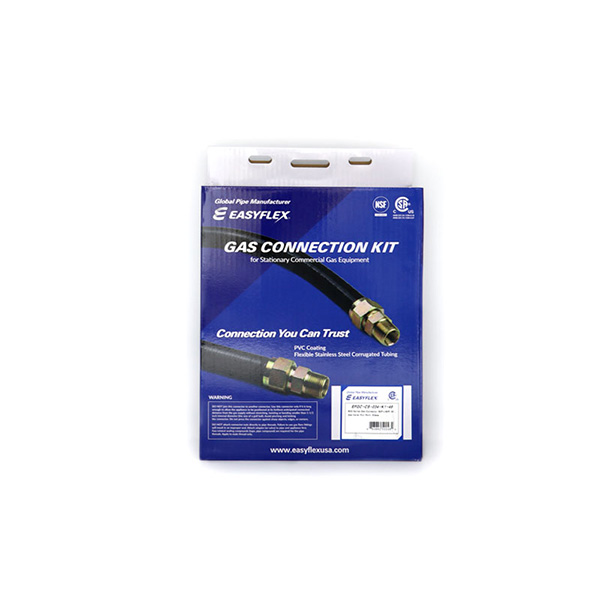

Gas Connector Kits - Stationary Gas Appliance Connector Kits

Introducing the Koflex BES series commercial gas connector kit, the perfect solution for stationary commercial appliances. This kit contains the most used parts required for your job, ensuring that you have what you need in one box. They are available in two connection sizes – 1/2″ and 3/4″ ID. Completing your job has never been easier and more worry-free with Easyflex commercial gas connector kits.

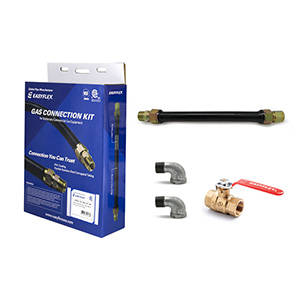

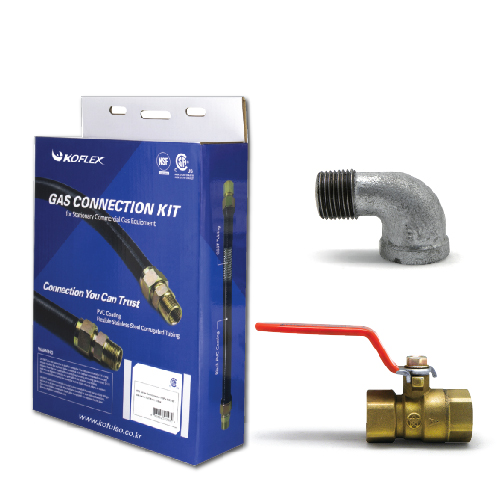

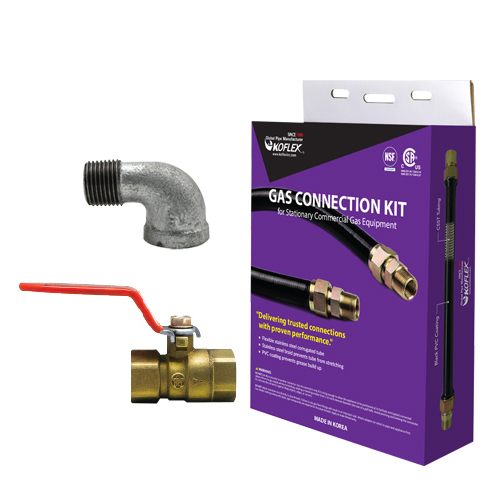

Kit Contents

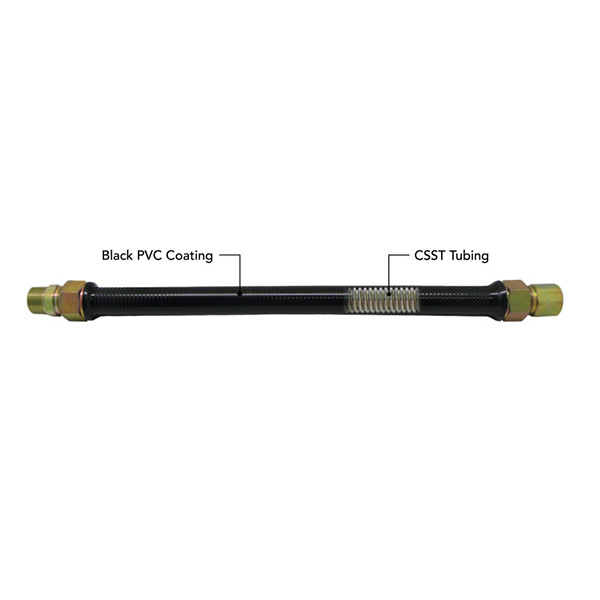

-One BES Series Commercial Gas Connector
-One Full Port Valve
-Two Elbows

Back to List

Models

  • Stationary Gas Appliance Connector # BES KIT 1 – 1/2″, 3/4″ and 1″ ID

    ID

    Part #

    Description

    Qty/Box

    1/2″ (3/4″OD)

    KFGC-CS-012-K1-24

    BES Kit 1, 24″

    1

    1/2″ (3/4″OD)

    KFGC-CS-012-K1-36

    BES Kit 1, 36″

    1

    1/2″ (3/4″OD)

    KFGC-CS-012-K1-48

    BES Kit 1, 48″

    1

    ID

    Part #

    Description

    Qty/Box

    3/4″ (1″OD)

    KFGC-CS-034-K1-24

    BES Kit 1, 24″

    1

    3/4″ (1″OD)

    KFGC-CS-034-K1-36

    BES Kit 1, 36″

    1

    3/4″ (1″OD)

    KFGC-CS-034-K1-48

    BES Kit 1, 48″

    1

    3/4″ (1″OD)

    KFGC-CS-034-K1-60

    BES Kit 1, 60″

     1

Technical Data


CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • ANSI Z 21.24 / CSA 6.10
  • ANSI Z 21.75 / CSA 6.27
