Refrigeration tubes

Application

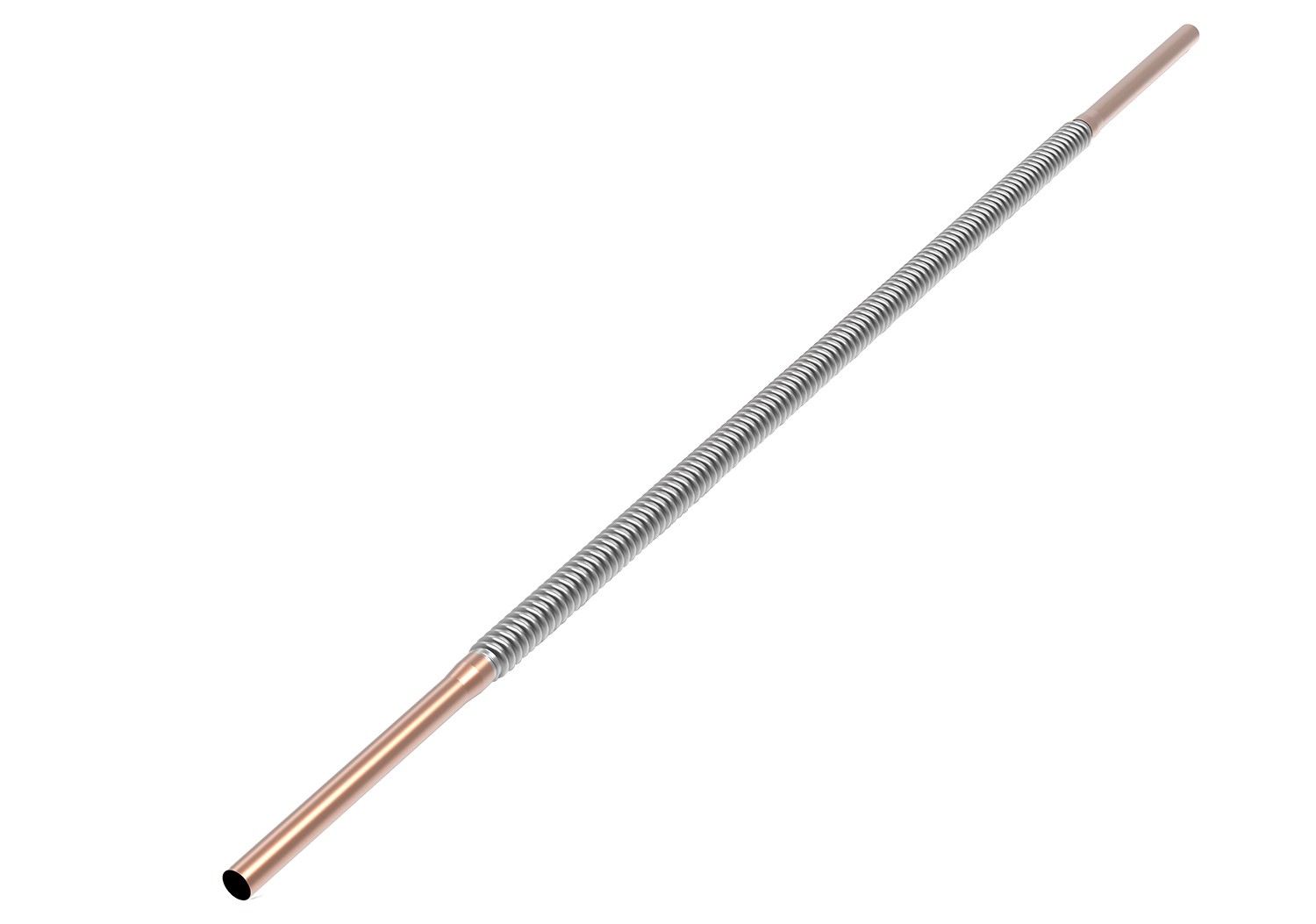

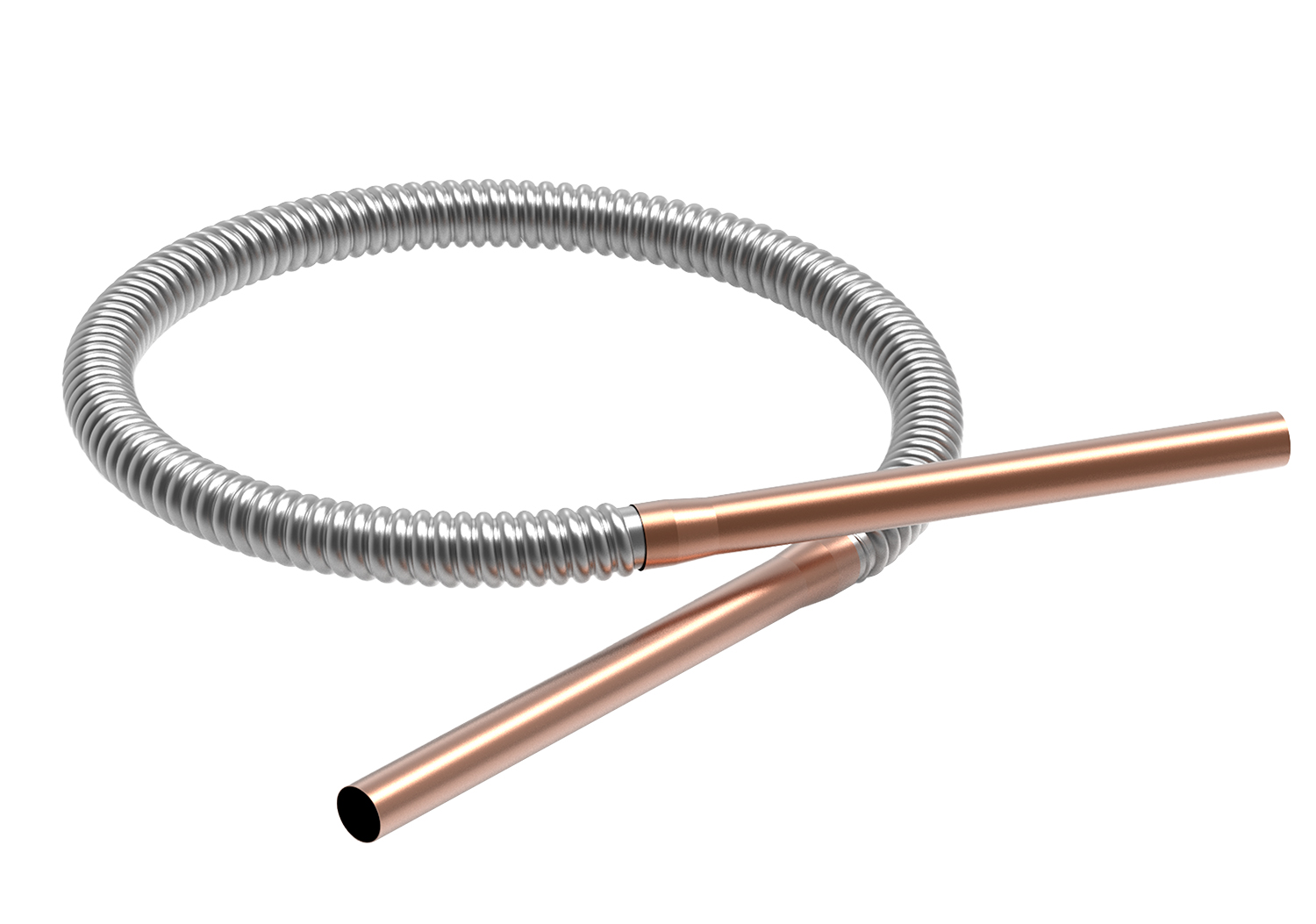

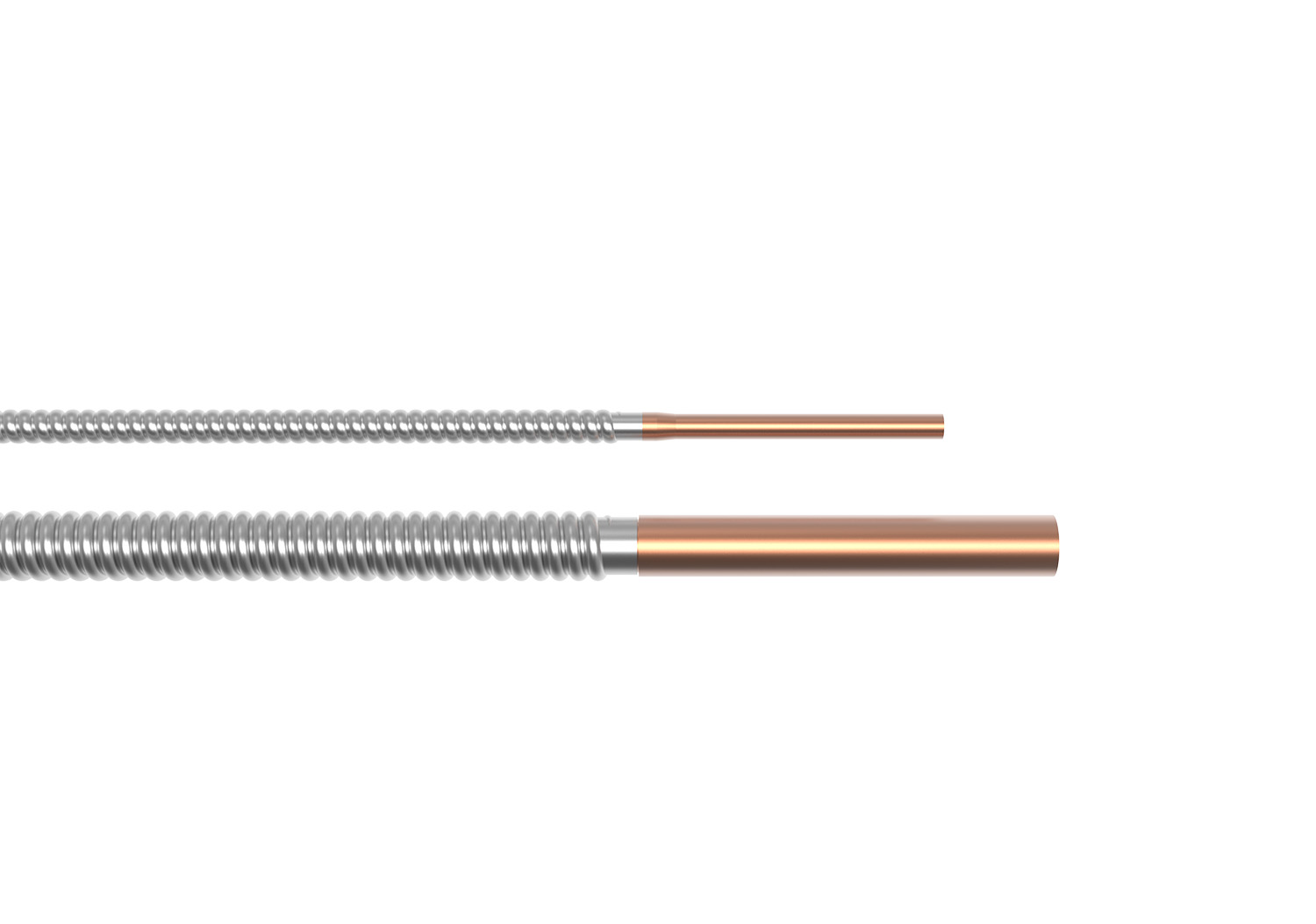

• Refrigeration tube

Benefits
• Corrugated stainless steel flexible piping, protected by woven stainless steel jacketing, connects evaporator units to line sets quickly and easily
• Eliminates kinking and refrigerant line leaks
• Allows for ease of future maintenance

Back to List

Models

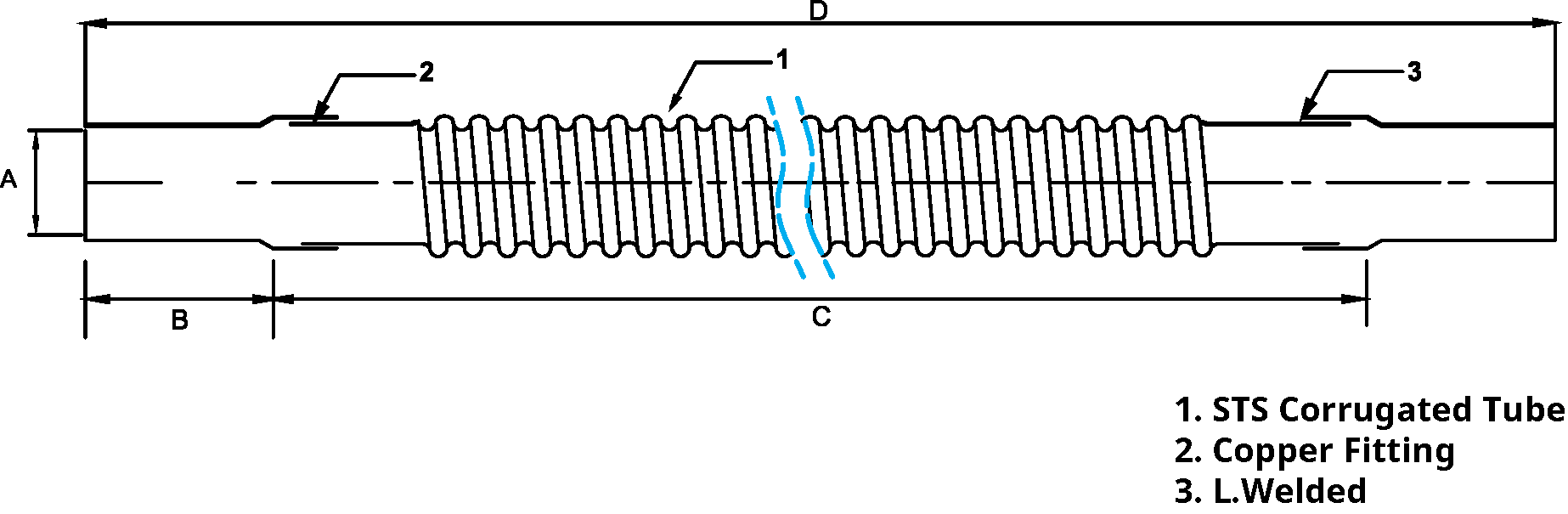

  • Copper Tube O.D
    (A)
    		Part#Max Working Pressure
    (kgf / cm2)    		Length (C/D) ±5
    CD
    1/4” ( 6.35mm)
    		KFRC-RF 1/4 (6A)-T
    		3520130mm200mm
    230mm300mm
    3/8” ( 7.94mm)
    		KFRC-RF 3/8 (8A)-T
    		330mm400mm
    430mm500mm
    1/2” (12.70mm)
    		KFRC-RF 1/2 (12A)-T
    		530mm600mm
    630mm700mm
    5/8” (15.88mm)
    		KFRC-RF 5/8 (15A)-T
    		730mm800mm
    830mm900mm
    3/4” (19.05mm)
    		KFRC-RF 3/4 (20A)-T
    		930mm1,000mm
    1,030mm1,100mm
    7/8” (22.22mm)
    		KFRC-RF 7/8 (25A)-T
    		1,130mm1,200mm
    1,230mm1,300mm
    1,330mm1,400mm
    1,430mm1,500mm

Technical Data
