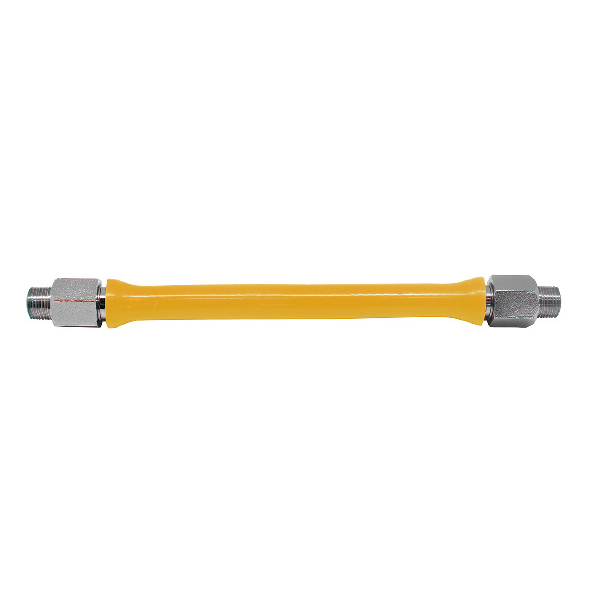

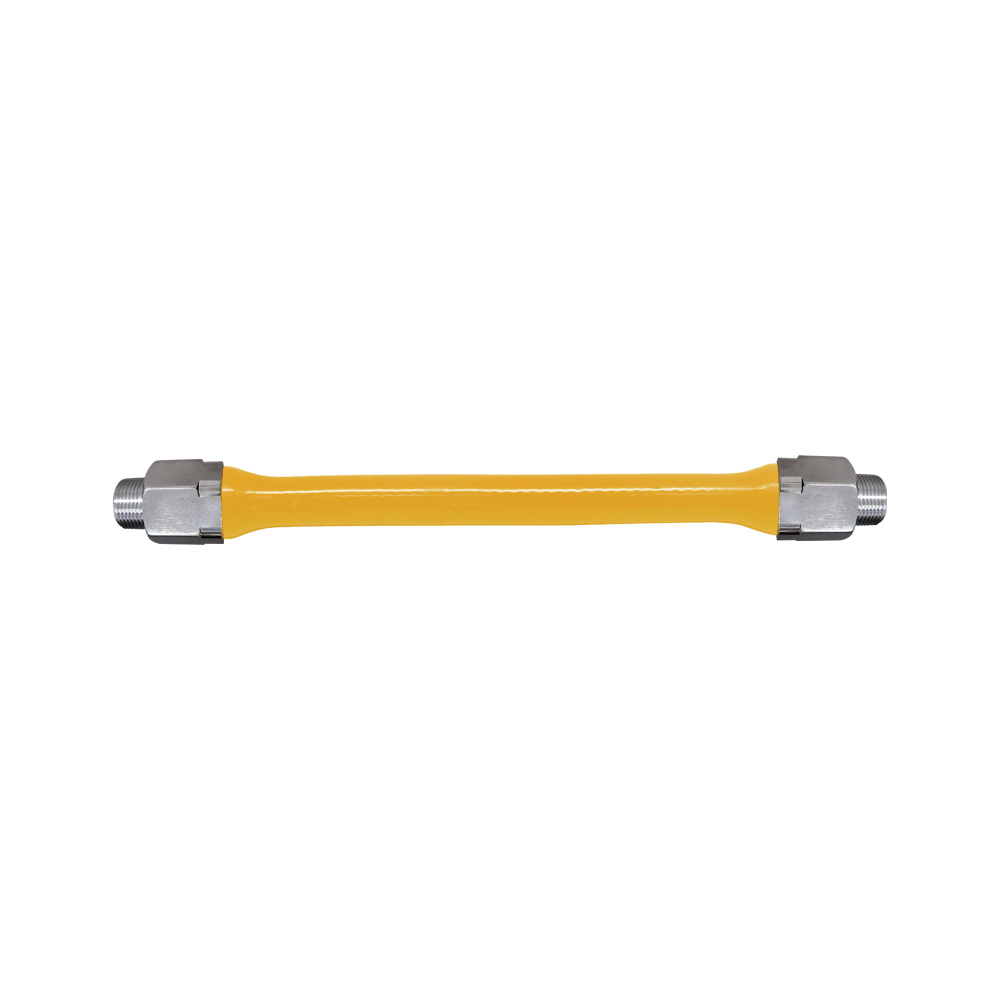

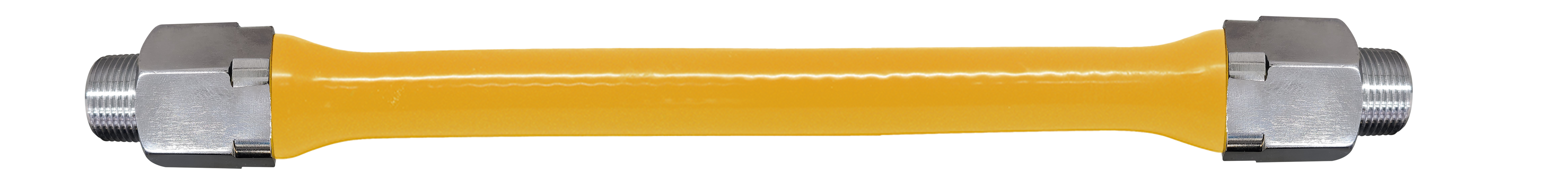

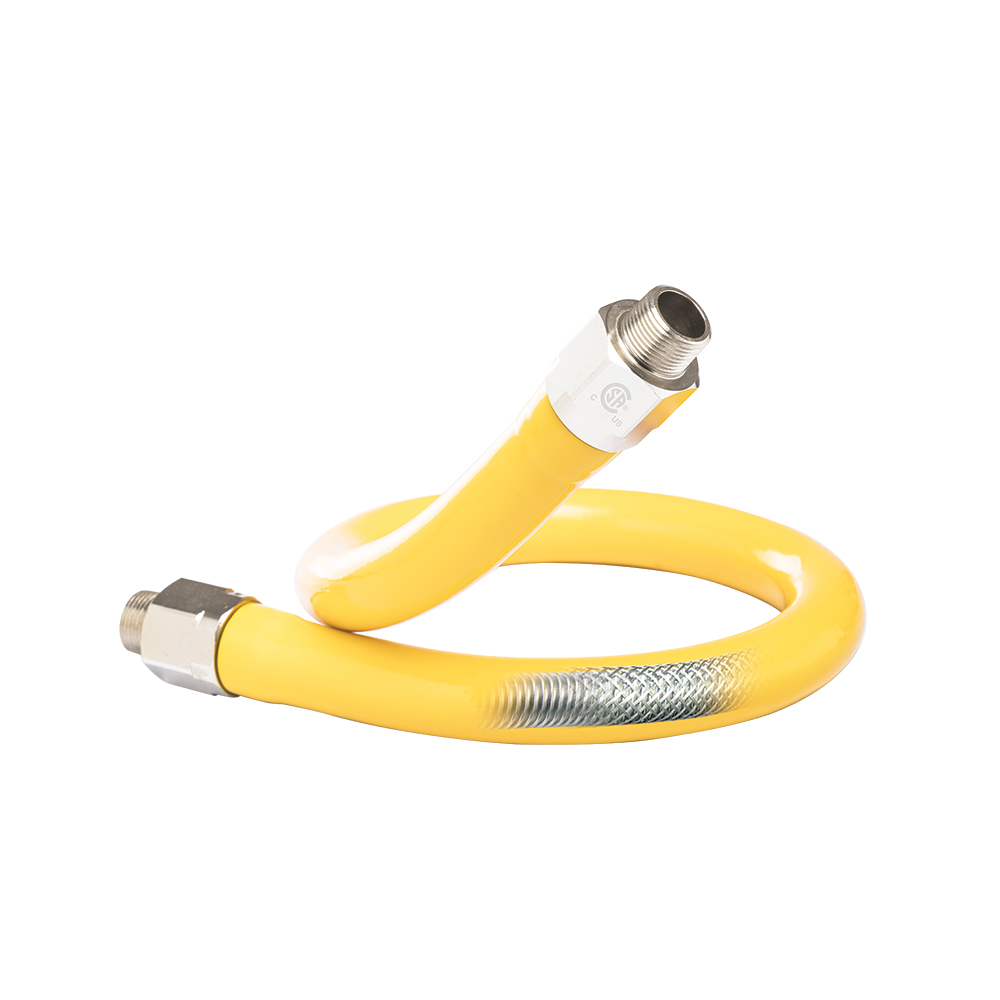

Commercial Gas Connector - Movable Appliance

Back to List

Models

  • 012-BJ Series Connector with Rotational Fittings

    ID

    Part #

    Description

    Qty/Box

    1/2″ (5/8″OD)

    KFGC-012-BJ-1010-24

    1/2" MIP x 1/2" MIP, 24″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJ-1010-36

    1/2" MIP x 1/2" MIP, 36″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJ-1010-48

    1/2" MIP x 1/2" MIP,48″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJ-1010-60

    1/2" MIP x 1/2" MIP, 60″

    20

  • 034-BJ Series Connector with Rotational Fittings

    ID

    Part #

    Description

    Qty/Box

    3/4" (1"OD)

    		KFGC-034-BJ-1414-24
    		3/4" MIP x 3/4" MIP, 24"
    		20

    3/4" (1"OD)

    		KFGC-034-BJ-1414-36
    		3/4" MIP x 3/4" MIP, 36"
    		20
    3/4" (1"OD)
    		KFGC-034-BJ-1414-48
    		3/4" MIP x 3/4" MIP, 48"
    		20
    3/4" (1"OD)
    		KFGC-034-BJ-1414-60
    		3/4" MIP x 3/4" MIP, 60"
    		20
    3/4" (1"OD)
    		KFGC-034-BJ-1414-72
    		3/4" MIP x 3/4" MIP, 72"
    		20
  • 100-BJ Series Connector with Rotational Fittings

    ID

    Part #

    Description

    Qty/Box

    1" (1-1/4"OD)

    KFGC-100-BJ-1616-24

    1" MIP x 1" MIP,, 24″

    20

    1" (1-1/4"OD)

    KFGC-100-BJ-1616-36

    1" MIP x 1" MIP, 36″

    20

    1" (1-1/4"OD)

    KFGC-100-BJ-1616-48

    1" MIP x 1" MIP,48″

    20

    1" (1-1/4"OD)

    KFGC-100-BJ-1616-60

    1" MIP x 1" MIP, 60″

    20

Technical Data

• CSST Tubing : Stainless Steel 304 (ASTM A 240)

• Fittings : Zinc-Plated Steel S45C

• Braid : Stainless Steel 304 (ASTM A 240)

• Coating : Non-Flammable Yellow PVC

• Max. Operating Pressure : 0.5 psi

• For Indoor Use Only


CERTIFICATIONS, APPROVALS

  • ANSI Z 21.69 / CSA 6.16 Connectors for Movable Gas Appliances.


Materials

TubingStainless Steel 304 (ASTM A240)
CoatingPVC
FittingZinc-Plated Steel S45C
BraidStainless Steel 304(ASTM A240)



Pressure & Temperature

Rated Operating Temperature-40°F to 150°F (-40°C to 65°C)
Rated Pressure0.5 psi



Connector Minimum Flow Capacity

Straight Length Capacity (BTU/Hr., 0.64 SpGr., 1,000 BTU per cubic ft. at 0.5″ W.C. pressure drop)

Series

ID

OD

12″

18″

24″

30″

36″

48″

60″

72″

0121/2"5/8"180,000 164,200150,000136,000125,000106,00093,20086,000
0343/4"1"--290,900270,500255,900215,900197,400173,900
1001"
1/4"--581,800545,200515,900

442,700

398,900347,300

The above flow capacities are the minimum performance requirement per ANSI Z 21.24/ CSA 6.10 and ANSI Z 21.75/ CSA 6.27. Easyflex Gas Connectors exceed these minimum flow capacity requirements.
