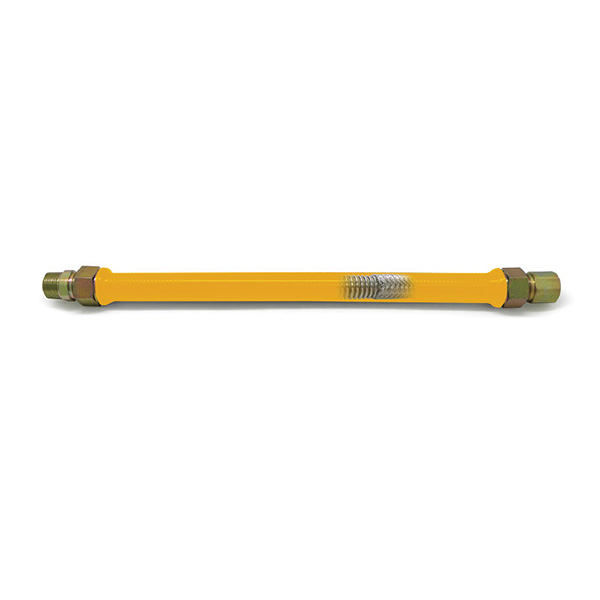

Commercial Gas Connector - Countertop Appliance

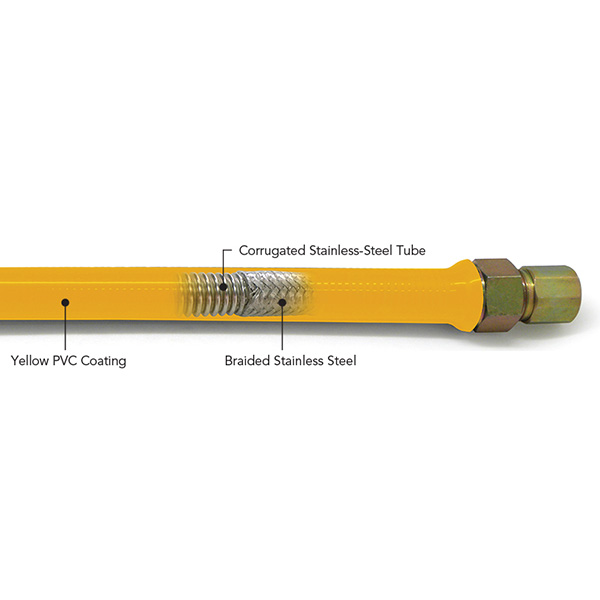

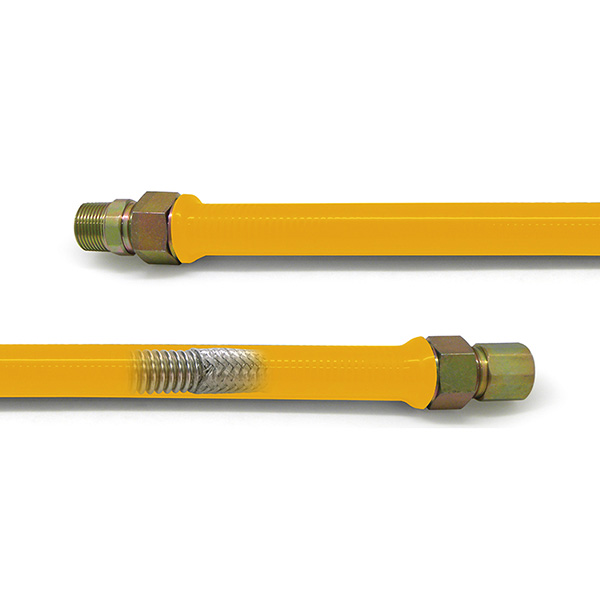

Introducing our commercial gas connectors designed for countertop appliances. These connectors are made from premium stainless steel 304 for both the tubing and the braid, ensuring top-notch quality. With a yellow PVC coating and zinc-coated fittings, they offer exceptional safety and durability. They are CSA certified and have a maximum operating pressure of 0.5psi.

Back to List

Models

  • 1/2” ID (5/8”) OD Countertop Appliance Gas Connector – BJC Series

    ID

    Part #

    Description

    Qty/Box

    1/2″ (5/8″OD)

    KFGC-012-BJC-1010-24

    1/2″ MIP x 1/2″ MIP, 24″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJC-1010-36

    1/2″ MIP x 1/2″ MIP, 36″

    20

    ID

    Part #

    Description

    Qty/Box

    1/2″ (5/8″OD)

    KFGC-012-BJC-1011-24

    1/2″ MIP x 1/2″ FIP, 24″

    20

    1/2″ (5/8″OD)

    KFGC-012-BJC-1011-36

    1/2″ MIP x 1/2″ FIP, 36″

    20

  • 3/4” ID (1”) OD Countertop Appliance Gas Connector – BJC Series

    ID

    Part #

    Description

    Qty/Box

    3/4″ (1″OD)

    KFGC-034-BJC-1414-18

    3/4″ MIP x 3/4″ MIP, 18″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1414-24

    3/4″ MIP x 3/4″ MIP, 24″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1414-36

    3/4″ MIP x 3/4″ MIP, 36″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1414-48

    3/4″ MIP x 3/4″ MIP, 48″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1414-60

    3/4″ MIP x 3/4″ MIP, 60″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1414-72

    3/4″ MIP x 3/4″ MIP, 72″

    20

    ID

    Part #

    Description

    Qty/Box

    3/4″ (1″OD)

    KFGC-034-BJC-1415-18

    3/4″ MIP x 3/4″ FIP, 18″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1415-24

    3/4″ MIP x 3/4″ FIP, 24″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1415-36

    3/4″ MIP x 3/4″ FIP, 36″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1415-48

    3/4″ MIP x 3/4″ FIP, 48″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1415-60

    3/4″ MIP x 3/4″ FIP, 60″

    20

    3/4″ (1″OD)

    KFGC-034-BJC-1415-72

    3/4″ MIP x 3/4″ FIP, 72″

    20

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • ANSI Z 21.24 / CSA 6.10
  • ANSI Z 21.75 / CSA 6.27

Materials

TubingStainless Steel 304 (ASTM A240)
CoatingPVC
FittingZinc-Plated Steel S45C
BraidStainless Steel 304(ASTM A240)



Pressure & Temperature

Rated Operating Temperature-40°F to 150°F (-40°C to 65°C)
Rated Pressure0.5 psi



Connector Minimum Flow Capacity

Straight Length Capacity (BTU/Hr., 0.64 SpGr., 1,000 BTU per cubic ft. at 0.5″ W.C. pressure drop)

Series

ID

OD

12″

18″

24″

30″

36″

48″

60″

72″

0141/4"
3/8"
48,000
43,800
40,000
36,400
33,400
28,300
24,900
23,100
0383/8"
1/2"
102,000
93,100
85,000
77,100
71,100
60,500
53,200
49,100
012
1/2"
5/8"
180,000
164,200
150,000
136,000
125,000
106,000
93,200
86,000
034
3/4"
1"
290,900
290,900
290,900
270,500
255,900
215,000
197,400
173,900

The above flow capacities are the minimum performance requirement per ANSI Z 21.24/ CSA 6.10 and ANSI Z 21.75/ CSA 6.27. koflex Gas Connectors exceed these minimum flow capacity requirements.
