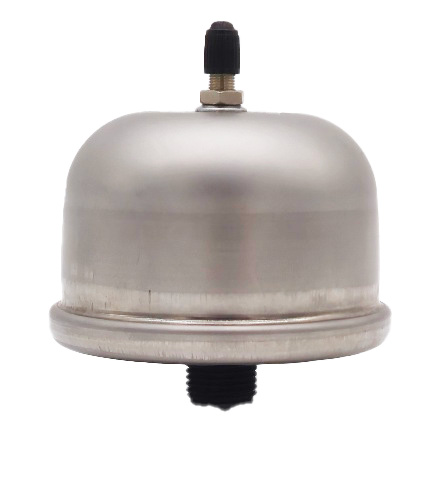

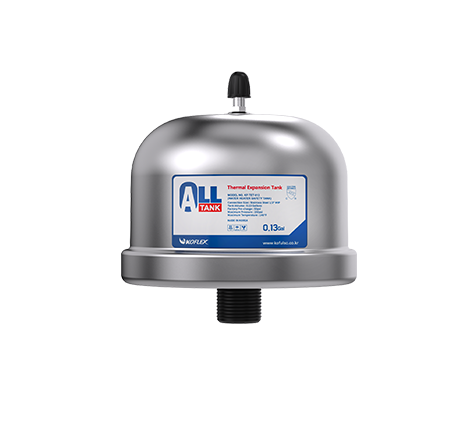

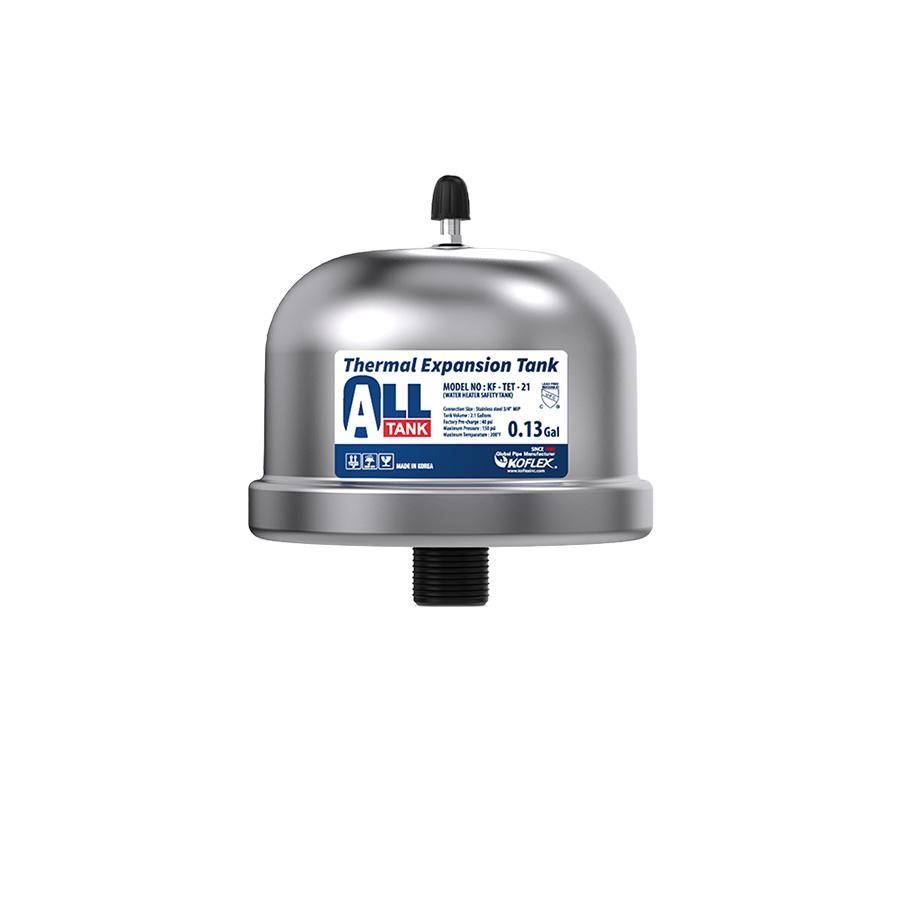

TANK ALL Thermal Expansion Tank Mini

-Stainless Steel 304
-Stainless Steel Connection : 1/2" MIP
- Max. Pressure : 150 psi
- Max. Temperature : 140 °F

Back to List

Models

  • Part #

    Description

    Qty/Box

    KF-TET-0

    Thermal Expansion Tank, 0.13 Gallon

    1

Technical Data

CERTIFICATIONS, APPROVALS, LISTINGS, & COMPLIANCE

  • cUPC Certified
  • NSF 61 Compliant


Materials

ShellStainless Steel 304
Diaphragm100% butyl rubber lined with polypropylene
ConnectionStainless steel 1/2″ MIP

Specifications

Connection Size1/2″ MIP
Tank Volume0.13 Gallons
Factor Pre-Charge50 psi
Maximum Pressure150 psi
Maximum Temperature140°F
